Application and Description
This cable is used for fixed installation in electrical equipment or inside or outside lighting devices under the
premise of protection. Only in signal and control circuits, suitable for surface mounting or embedding in conduits.
The maximum temperature of the conductor can reach 90° C during normal use. It must not come into contact
with other objects above 85°C.
Standards and Approvals
ROHS Certification
Cable Construction
- Solid Bare Copper Stranded Conductor
- Single Core, Compliant with DIN VDE 0281-3, HD 21.3 S3 and IEC 60227-3
- PVC TI3 Insulation
- Core Color Coding Compliant with VDE-0293
- H05V-U (20, 18 & 17 GA)
- H07V-U (16 GA and above)
Technical Features
- Operating Voltage: 300/500v (H05V-U)
- Operating Voltage: 450/750v (H07V-U)
- Test Voltage: 2000V (H05V-U)/2500V (H07V-U)
- Dynamic bending radius: 15 x Ø
- Static bending radius: 15 x Ø
- Operating temperature during application: -5º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩ x km
Cable parameters：
|
Number of cores x conductor cross-sectional area # x mm² |
Nominal insulation thickness mm |
Nominal outer diameter mm |
Nominal copper weight kg/km |
Nominal cable weight kg/km |
|
1 x 0.5 |
0.6 |
2.1 |
4.8 |
9 |
|
1 x 0.75 |
0.6 |
2.2 |
7.2 |
11 |
|
1 x 1 |
0.6 |
2.4 |
9.6 |
14 |
|
1 x 1.5 |
0.7 |
2.9 |
14.4 |
21 |
|
1 x 2.5 |
0.8 |
3.5 |
24.0 |
33 |
|
1 x 4 |
0.8 |
3.9 |
38.0 |
49 |
|
1 x 6 |
0.8 |
4.5 |
58.0 |
69 |
|
1 x 10 |
1.0 |
5.7 |
96.0 |
115 |

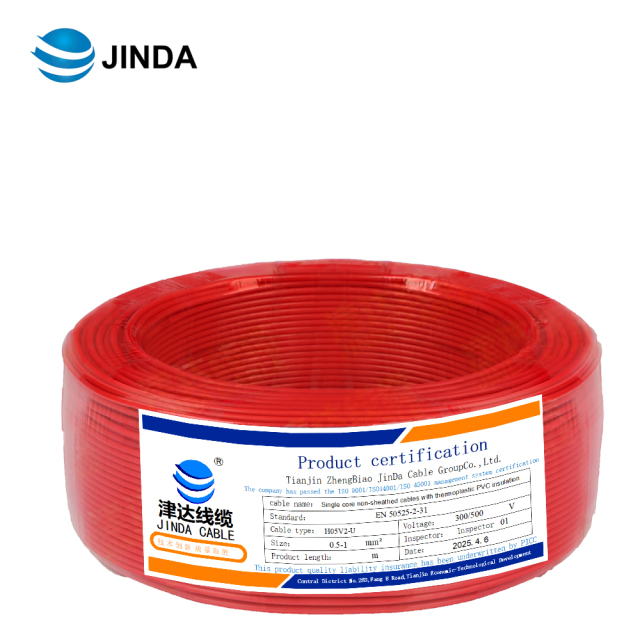

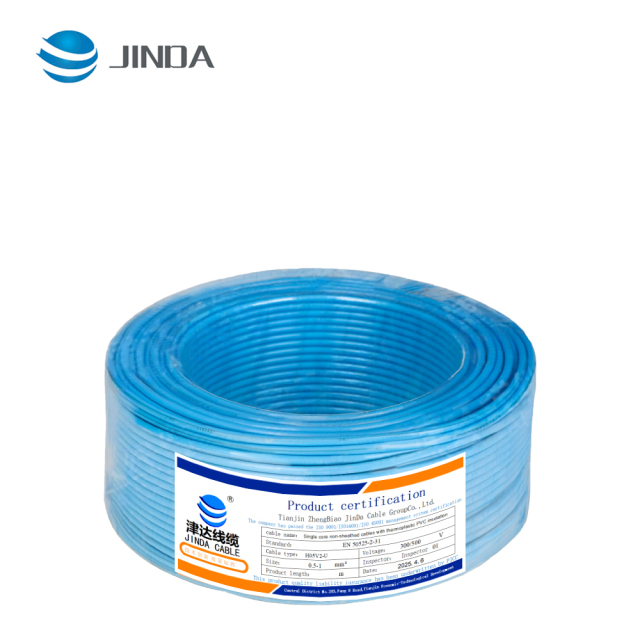

Product Description
Intended Application & Target Users
This H05V2-U single-core cable is designed for use by OEMs, panel builders and electrical contractors who require a dependable internal wiring solution. It caters to scenarios where a solid copper wire conductor is preferred for fixed installation inside appliances, lighting fixtures or control cabinets. As part of the broader ecosystem of wire manufacturers and specialised suppliers of sustainable cable materials, this cable supports efficient wiring systems in demanding operational environments. The target users include equipment designers specifying wiring harnesses, procurement teams sourcing from cable manufacturing vendors, as well as installation engineers overseeing power distribution and fixed wiring tasks within commercial or residential buildings. By providing a standardised, high-performance wiring product, it helps streamline supply chains in the power wiring domain and supports long-term reliability for users of fixed power supply systems.
Technical Characteristics & Core Parameters
The H05V2-U cable incorporates a Class 1 solid bare copper conductor in accordance with IEC 60228 standards, which ensures excellent conductivity and mechanical stability. The insulation is of heat-resistant PVC type TI-3 conforming to EN 50363-3, selected for continuous conductor temperatures up to +90 °C under normal use and short-circuit conditions up to +160 °C. The nominal voltage rating for this cable is 300/500 V, with a test voltage of 2000 V AC, meaning it offers reliable dielectric performance for fixed wiring installations. The conductor sizes commonly range from 0.5 mm², 0.75 mm² to 1 mm², with typical insulation thickness around 0.6 mm and external diameter in the 2 mm range. These precise parameters demonstrate that this is a cable suited for internal fixed wiring rather than flexible power cords, aligning with the expectations of the professional cable manufacturing sector.
Industry Usage & Application Value
In the realm of building services, lighting systems and equipment manufacturing, this H05V2-U cable has high relevance. It supports fixed wiring applications in luminaires, control gear, junction boxes and appliance wiring, where a rigid copper conductor and heat-resistant insulation are required. For design engineers and specifying teams within wire manufacturers, the availability of such a standardized cable specification simplifies procurement and integration processes. From the perspective of sustainability, while this cable uses conventional PVC insulation, its long service life and compatibility with conventional wiring infrastructures support ongoing wiring system optimisation across power-supply-dependent installations. For end-users responsible for power distribution in lighting or control assemblies, deployment of H05V2-U ensures long-term reliability, minimal maintenance, and a clear path to integration within established supply chains of cable manufacturing professionals.
Use Scenarios
Lighting Fixture Manufacturer Specifying Internal Wiring
A lighting-fixture OEM (original equipment manufacturer) purchases H05V2-U cables for integration inside LED down-lights and surface luminaires. The electrical engineer at the fixture company requires a fixed-wiring cable that meets elevated conductor temperature ratings because the luminaire may operate adjacent to heat-emitting LED modules or driver circuits. By selecting the H05V2-U with copper wire conductor and heat-resistant PVC insulation, they ensure that their internal wiring can safely support the built-in power supply components and handle ambient installation temperatures up to +90 °C. Meanwhile, their procurement team engages with trusted wire manufacturers to maintain consistency across batches, aligning with their product quality control and overall supply-chain plan.
Panel Builder for HVAC and Control Systems
An electrical panel builder firm working for a building automation integrator designs distribution panels for HVAC control modules and lighting control units. The wiring installer needs to route single-core cables between terminal blocks, ensuring reliability and compliance for internal wiring. By choosing H05V2-U from a recognized cable manufacturing source, structures inside the panel remain compact, insulation integrity is maintained under potential elevated cabinet temperatures, and the rigid copper wire conduits simplify termination into screw-clamp blocks. The panel builder can guarantee end-customer performance and documentation of the power supply wiring integrity under warranty, thus enhancing their credibility.
Maintenance Engineer Upgrading Fixed Wiring in Commercial Facility
A facilities maintenance engineer at a large commercial building is tasked with upgrading fixed wiring of control circuits within mechanical rooms and service corridors, where ambient temperatures and thermal load may exceed typical wiring limits. The engineer selects H05V2-U cable because its specification allows for higher conductor temperature tolerance, and the procurement engages with established wire manufacturers to source cable batches with verification certificates. The use of this cable supports ongoing equipment upgrades, integration of smart control modules, and ensures that the internal wiring to control cabinets operates within safe margins for the power supply infrastructure — thus reducing the risk of downtime and compliance issues.
About Us
At JindA Cable, we specialise in the design and manufacture of high-quality wiring solutions that serve wiring harnesses, appliance makers, lighting engineers and infrastructure integrators worldwide. Our domain expertise spans fixed internal wiring, single-core cables and modular wiring systems tailored for the demands of modern equipment and building services. We partner with leading-edge wire manufacturers and maintain advanced extrusion and assembly lines dedicated to cable manufacturing, enabling us to deliver products that align closely with the needs of OEMs, wiring specifiers and system integrators. Our customer base includes lighting fixture producers, electrical panel builders, facilities maintenance teams and global distributors seeking reliable, trace-able wires. Positioned as a key supplier in the value chain of power-supply wiring and control cabling, we commit to consistent quality, documentation and responsiveness rather than hype. For direct enquiry, sample supply or tailored wiring solutions request please contact our sales team today!
FAQ
What installation methods are suitable for H05V2-U cable?
The H05V2-U cable is intended for fixed installations either on surface mounted conduits or embedded wiring inside equipment. It is not designed for flexible movement or outdoor direct burial; installation must ensure mechanical protection and appropriate ambient temperature control.
What technical support and warranty policy applies?
Our cables are manufactured under controlled conditions and tested to harmonised standards. We provide a standard warranty covering manufacturing defects. Full data sheets and certification (such as EN 50525 compliance) are available for review. Any warranty claim must reference batch numbers and installation details for verification.
Which systems and terminations are compatible with the cable?
The H05V2-U cable features a rigid copper conductor suitable for screw-clamp terminations or soldered joints. The nominal cross-sections (e.g., 0.5 mm², 0.75 mm², 1 mm²) support standard terminal blocks, making it compatible with control panels, lighting drivers and fixed wiring junctions.
What is the typical supply lead time?
Standard stock lengths are typically available, and delivery depends on order volume and special colour variants. Please contact the sales team for current lead-times; expedited shipments may be available for repeat customers or bulk orders.
How does data privacy apply when ordering custom cables?
When you place an order for customised cable colours or lengths, we collect minimal business-contact and shipment information in accordance with our privacy policy. We do not share personal data with third parties outside necessary logistics partners, and all records are stored under secured protocols.
